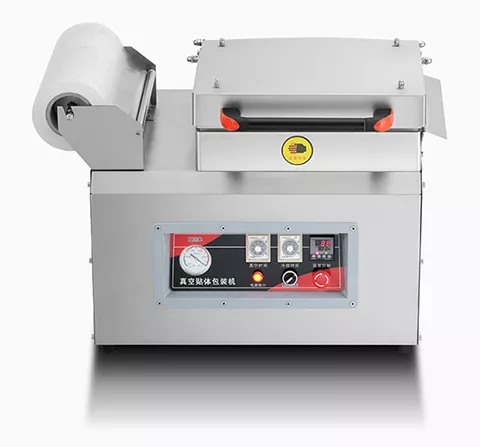

Semi-Automatic Skin Vacuum Machine
Intact semi-automatic packaging machines are ideal for packaging a wide range of fresh or frozen meat, poultry, and seafood products such as ribeye steaks, loin pork chops, T-bones, fish, sushi, oysters, lobster tail, salmon, or shrimp
It was developed exclusively for skin packaging. Ideal for meats, smoked foods, seafood and frozen meals, skin packaging machines allow you to substantially extend the shelf life of your product by preventing the formation of ice crystals (freezer burning)
Vacuum Chamber(L*W*H)(mm) | 390*310*55 |
Film width(mm) | 355mm |
1 Tray:325*225*20 mm
2 Trays:260*190*25 mm |
Category: Vacuum Packing Machines
Related products

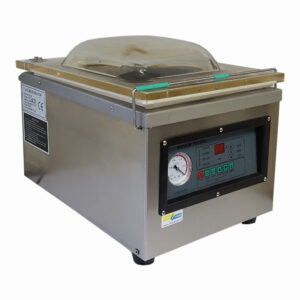

DZ Serises Desktop Vacuum Packing Machines
- DZ-260/300/400/500/600
Modle | DZ-260 | DZ-300 | DZ-400/2F | DZ-500/2F |
Chamber dimensions (L x W x H) | 398 x 242 x 100 mm | 380 x 320 x 100 mm | 420 x 440 x 130 mm | 520 x 520 x 130 mm |
Machine dimensions (L x W x H) | 495 x 355 x 400 mm | 485 x 385 x 400 mm | 540 x 490 x 500 mm | 650 x 580 x 560 mm |
Seal bars (L) | 2 x 300 mm | 2 x300 mm | 2 x 400mm | 2 x 500mm |
Pump capacity | 8 m³/h | 8 m³/h | 20 m³/h | 20 m³/h |
Machine cycle | 15-40 sec | |||
Voltage | 220V 50HZ |
Vacuum thermoforming Machines
The thermoforming machineHY-460 meets the highest demands for industrial sized production while it is designed for large production environments and is suited for high-speed operation.With its film width, repeat length/index and optimized lifting movement.
The innovative lifting system including compact hygienic cylinders and a double knee lever ensure a high closing pressure of the format die for precise movements and formidable packaging designs. To reduce compressed air consumption, a combination with individual stroke adjustment and lifting are simple but efficient. Also, vacuum valves are placed directly at the die. This means even shorter ways to create vacuum and that adds up to a quicker production.
Feature
1. The machine works smoothly and continuously, and is suitable for bagging and sealing all kinds of masks, medical supplies, sanitary supplies and other products.
2. Automatic bagging, photoelectric correction, no burr, mold forming.
3. the equipment can be configured according to different types of feeder.
4. Adopt Mitsubishi PLC imported from Japan to improve accuracy and high stability of equipment.
5. Intermittent sealing is better to ensure the beauty of sealing and avoid leakage.
6. The machine is easy to operate, PLC touch screen, can according to the packaging material, product thickness and length of the packaging temperature and speed adjustment.
Servo motor.
Through the control of light, electricity and gas, the fault can be self-diagnosed and the display is clear. The language of the operating system can be used in Spanish, French, Korean, Russian, Japanese, Arabic and other local languages.
7. The whole machine is covered with stainless steel, good appearance, easy to clean and durable.
Low operation and maintenance cost.
8. Intelligent PLC temperature control.
9. the required number of automatic alarm reminder, the required number of automatic ingredients and stacking.
Personalized function customization
- MAP
- oxygen O2
- Skin or form shrink packaging
- Top film forming for Snap-in Lids
- Gas mixer and/or analysis device
- Pre-heating systems
- Knee-free loading zone
- Various forming procedures
- Various cutting systems
- Various pack coding and printing systems, like:- print mark control – labelling equipment, bottom and top – stamp coding – hot embossing – thermo transfer printer – inkjet – laser systems
- Opening aids, like peel corners, bend and peel, etc. Detection systems
Vacuum Premade Bag Packing Machine
DZ-600/2SE Pitched Double Chamber Vacuum Packing Machine
- DZ-600/2SE
Modle | DZ-600/2SE |
Chamber dimensions (L x W x H) | 665 x 525 x 160 mm |
Machine dimensions (L x W x H) | 1460 x 610 x 770 mm |
Seal bars (L) | 2 x 600 mm |
Pump capacity | 63 m³/h |
Machine cycle | 15-40 sec |
Voltage | 380V 50HZ |
Features
√ Standard Time control √ Free options: Cut-off and Wide seal √ Standard Soft Air √ Standard Double seal √ Full optionCustomize your Vacuum packing machine
Seal systems Sensor control Gas flush
For maximum protection Constant, guaranteed end vacuum Modified Atmosphere PackagingLiquid control Seal configurations Heavy duty

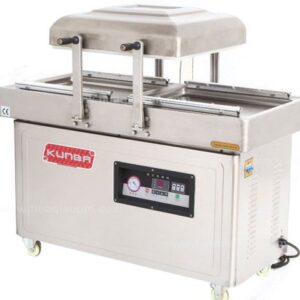

For vacuum sealing liquids Double or triple your capacity For heavy duty food packagingDZ Series Double Chamber Vacuum Packing Machine
- DZ-400/500/600/700/2SE
Normal type | Flat type | |||
Modle | DZ-400 | DZ-500 | DZ-600 | DZ-700 |
Chamber dimensions (L x W x H) | 500 x 430 x 160 mm | 565 x 525 x 160 mm | 665 x 525 x 160 mm | 765 x 625 x 160 mm |
Machine dimensions (L x W x H) | 1120 x 500 x 960 mm | 1260 x 605 x 960 mm | 1460 x 605 x 960 mm | 1660 x 705 x 960 mm |
Seal bars (L) | 2 x 400 mm | 2 x500 mm | 2 x 600mm | 2 x 700mm |
Pump capacity | 20 m³/h | 40 m³/h | 60 m³/h | 60 m³/h |
Machine cycle | 15-40 sec | |||
Voltage | 380V 50HZ |
Features
√ Standard Time control | √ Free options: Cut-off and Wide seal |
√ Standard Soft Air | √ Standard Double seal |
√ Full option |
Customize your Vacuum packing machine
Seal systems |
Sensor control |
Gas flush |
For maximum protection | Constant, guaranteed end vacuum | Modified Atmosphere Packaging |
Liquid control |
Seal configurations |
Heavy duty |
For vacuum sealing liquids |

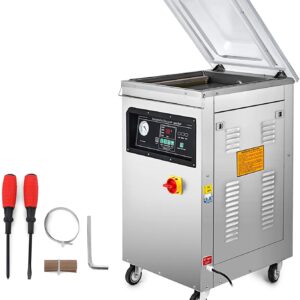

DZ Serises Vertical Vacuum Packing Machine
- DZ(2H)-400/500/600
Modle | DZ-400/2H | DZ-500/2H | DZ-600/2H |
Chamber dimensions (L x W x H) | 420 x 440 x 130 mm | 520 x 520 x 130 mm | 625 x 620 x 160 mm |
Machine dimensions (L x W x H) | 540 x 488 x 960 mm | 650 x 580 x 960 mm | 760 x 690 x 960 mm |
Seal bars (L) | 2 x 400 mm | 2 x500 mm | 2 x 600mm |
Pump capacity | 20 m³/h | 20 m³/h | 40 m³/h |
Machine cycle | 15-40 sec | ||
Voltage | 220V 50HZ |
For greater packaging needsThe DZ(2H) series offer long lasting quality, optimal capacity
and an attractive price. Sensor control, Advanced Control
System, Gas flush and many more options are available to
customize these vacuum packaging machines to your packaging needs.
This DZ SERISES vacuum packing machines offer more space and is standard equipped with 2 seal bars to double your packaging capacity. Also available with a frontal seal bar of 600 mm as an option.
Seal bar(L):from 400mm to 600mm
Pump capacity:from 20 m³/h to 40 m³/h
