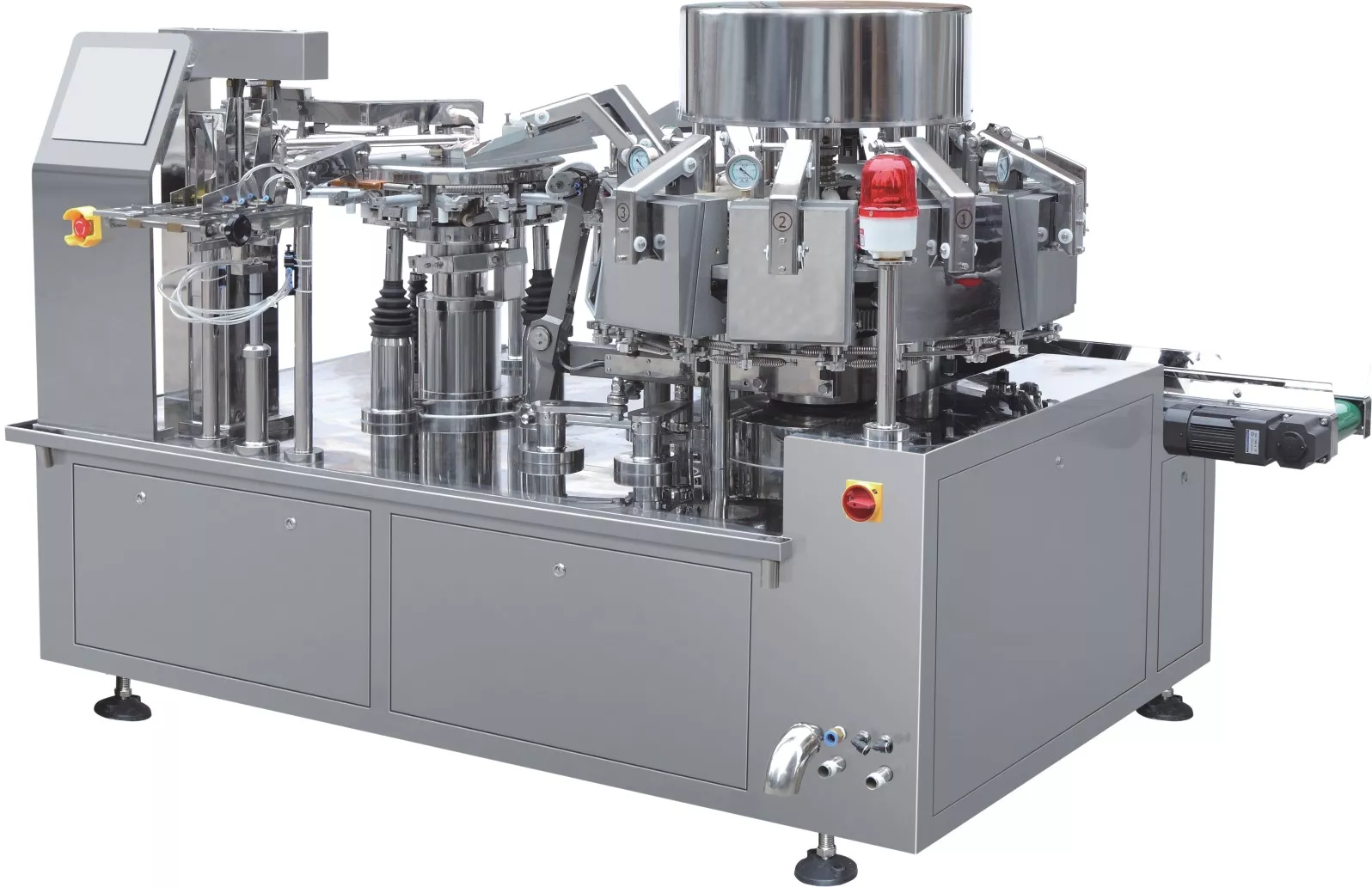

Vacuum Premade Bag Packing Machine
It can be connected to the powder/granule/liquid packaging machine to form a fully automatic vacuum packing line.
Bag size:width 70-220mm, length 80-300mm
Packing speed: 35-60 bags/min
Weighing accuracy:±1%
Filling range:20-1000g
Shipping & Delivery
Related products
Semi-Automatic Skin Vacuum Machine
Intact semi-automatic packaging machines are ideal for packaging a wide range of fresh or frozen meat, poultry, and seafood products such as ribeye steaks, loin pork chops, T-bones, fish, sushi, oysters, lobster tail, salmon, or shrimp
It was developed exclusively for skin packaging. Ideal for meats, smoked foods, seafood and frozen meals, skin packaging machines allow you to substantially extend the shelf life of your product by preventing the formation of ice crystals (freezer burning)
DZ Series Double Chamber Vacuum Packing Machine
- DZ-400/500/600/700/2SE
  |
 |
|||
| Normal type | Flat type | |||
| Modle | DZ-400 | DZ-500 | DZ-600 | DZ-700 |
| Chamber dimensions (L x W x H) | 500 x 430 x 160 mm | 565 x 525 x 160 mm | 665 x 525 x 160 mm | 765 x 625 x 160 mm |
| Machine dimensions (L x W x H) | 1120 x 500 x 960 mm | 1260 x 605 x 960 mm | 1460 x 605 x 960 mm | 1660 x 705 x 960 mm |
| Seal bars (L) | 2 x 400 mm | 2 x500 mm | 2 x 600mm | 2 x 700mm |
| Pump capacity | 20 m³/h | 40 m³/h | 60 m³/h | 60 m³/h |
| Machine cycle | 15-40 sec | |||
| Voltage | 380V 50HZ | |||
Features
Customize your Vacuum packing machine
Vacuum thermoforming Machines
The thermoforming machineHY-460 meets the highest demands for industrial sized production while it is designed for large production environments and is suited for high-speed operation.With its film width, repeat length/index and optimized lifting movement.
The innovative lifting system including compact hygienic cylinders and a double knee lever ensure a high closing pressure of the format die for precise movements and formidable packaging designs. To reduce compressed air consumption, a combination with individual stroke adjustment and lifting are simple but efficient. Also, vacuum valves are placed directly at the die. This means even shorter ways to create vacuum and that adds up to a quicker production.
Feature
DZ Serises Desktop Vacuum Packing Machines
- DZ-260/300/400/500/600
DZ Serises Vertical Vacuum Packing Machine
- DZ(2H)-400/500/600
For greater packaging needsThe DZ(2H) series offer long lasting quality, optimal capacity
and an attractive price. Sensor control, Advanced Control
System, Gas flush and many more options are available to
customize these vacuum packaging machines to your packaging needs.
This DZ SERISES vacuum packing machines offer more space and is standard equipped with 2 seal bars to double your packaging capacity. Also available with a frontal seal bar of 600 mm as an option.
Seal bar(L):from 400mm to 600mm
Pump capacity:from 20 m³/h to 40 m³/h
DZ-600/2SE Pitched Double Chamber Vacuum Packing Machine
- DZ-600/2SE
TECHNICAL SPECIFICATIONS
